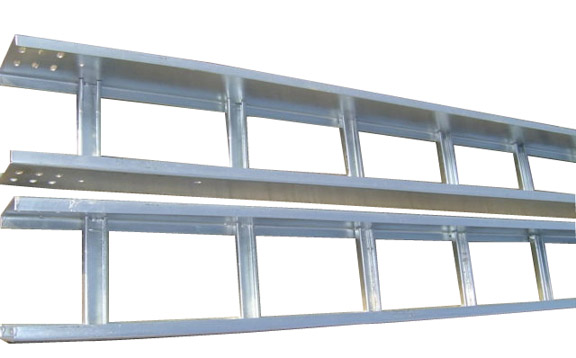

Technical requirements for surface treatment of anticorrosive bridge frames. Before using the bridge, we need to treat its surface, so as to ensure its safe use, and anti-corrosion bridge treatment method is one of them. It is manufactured in a specific technological environment and has good anti-corrosion performance. What are the technical requirements of anti-corrosion bridge surface treatment? The bridge factory will give you a detailed introduction below.

熱鍍鋅橋架主體對1.5~3mm厚度，小平均厚度≥6m,小局部厚度6m >3mm厚度 60am局部6m防護處理的表面光澤應不低于60%.檢測方法：按GB1743,油膜光澤度測定法，用光澤度儀測量數字直接顯示。表面防護層應具有表4中規定的3級耐鹽霧性。

The surface gloss of the main body of hot-dip galvanized bridge should not be less than 60% for protection treatment of 1.5-3 mm thickness, minimum average thickness (> 65 am), minimum local thickness (> 6 mm) and local thickness (> 3 mm), 60 am). Detection method: According to GB1743, oil film gloss measurement method, digital direct display is measured by gloss meter. The surface protective layer shall have the salt fog resistance of Grade 3 specified in Table 4.

當寬度大于400mm時，極限偏差為±4mm,當寬度小于等于400mm時，極限偏差為±3mm說明：蓋板取正偏差，槽底寬取負偏差，熱鍍鋅防護處理平面度允差每米不大于8mm,電鍍鋅和噴漆，防護處理平面度允差每米不大于4mm.

When the width is more than 400 mm, the limit deviation is (+4 mm). When the width is less than or equal to 400 mm, the limit deviation is (+3 mm). This means that the cover plate is positive deviation, the bottom width of the tank is negative deviation, the flatness tolerance of hot-dip galvanizing protection treatment is not more than 8 mm per meter, the flatness tolerance of galvanizing and spraying paint is not more than 4 mm per meter.

以上是對防腐橋架表面處理的技術要求的簡單介紹，防腐橋架在使用的時候適合在腐蝕性環境、大跨距、重載荷條件下進行使用，且它具有很高的機械強度，防火性能強，抗老化性能強，造型美觀，安裝方便，并且它的各種性能大大優于其他的橋架制品。

Above is a brief introduction of the technical requirements for surface treatment of anti-corrosion bridge. Anti-corrosion bridge is most suitable for use in corrosive environment, long-span, heavy load conditions. It has high mechanical strength, strong fire resistance, anti-aging performance, beautiful appearance, convenient installation, and its various properties are much better than other bridge products.

這就是今天由濟南防腐電纜橋架小編給大家介紹的純干貨的內容了，相信今天的內容能給大家?guī)硪欢ǖ膸椭?，如果您對文章的?nèi)容還有不明白的地方，歡迎大家點擊我們的網站留言討論：http://www.b10015.cn

This is the content of the pure dry goods introduced to you by Jinan Antiseptic Cable Bridge Frame Editor. I believe that today's content can bring you some help. If you still don't understand the content of this article, you are welcome to click on our official website to discuss: http://www.b10015.cn.
